40264 - How to add tabs to your HTML output

Sample 40264: How to add tabs to your HTML output

You can add tabs to your HTML output using the sample TableEditor tagset, which you can download here.

Once the tagset is downloaded, the tagset option WEB_TABS= can be used to add a tab for each procedure or DATA step. Each tab name, which is separated by a comma, will generate a new tab displayed in the HTML file.

Specifying the output in the individual tabs allow you to isolate the output for viewing and printing specific output relating to the tab. Each procedure or DATA step can be placed under a tab. The FILENAME statement with the URL access method and the ODS PATH statement allows you to download and compile the tagset in the Work location for this example.

filename temp url "http://support.sas.com/rnd/base/ods/odsmarkup/tableeditor/tableeditor.tpl"; ods path(prepend) work.templat(update); %include temp; ods tagsets.tableeditor file="c:\temp\temp.html" options(web_tabs="SASHELP.CLASS,SASHELP.AIR"); proc print data=sashelp.class(obs=5); run; proc print data=sashelp.air(obs=5); run; ods tagsets.tableeditor close;

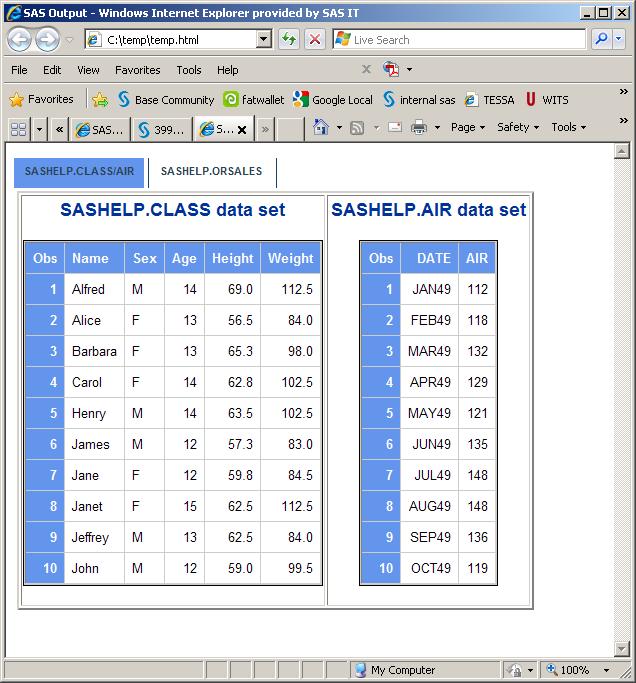

The previous example can be extended to display multiple procedures under a single tab. For example, if you want to display a table and a graph on the same page, the PANELCOLS= option can be used to add multiple procedures on the same page. Using the reserved tab name HIDE allows you to place multiple procedures under a single tab. In the example below, the output of the SASHELP.CLASS and the SASHELP.AIR data sets share the same tab.

filename temp url "http://support.sas.com/rnd/base/ods/odsmarkup/tableeditor/tableeditor.tpl"; ods path(prepend) work.templat(update); %include temp; ods tagsets.tableeditor file="c:\temp\temp.html" style=sasweb options(panelcols="2" web_tabs="SASHELP.CLASS/AIR,HIDE,SASHELP.ORSALES"); proc print data=sashelp.class(obs=10); title "SASHELP.CLASS data set"; run; proc print data=sashelp.air(obs=10); title "SASHELP.AIR data set"; run; proc print data=sashelp.orsales(obs=10); var product_line product_group quarter; title "SASHELP.ORSALES data set"; run; ods tagsets.tableeditor close;

These sample files and code examples are provided by SAS Institute Inc. "as is" without warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. Recipients acknowledge and agree that SAS Institute shall not be liable for any damages whatsoever arising out of their use of this material. In addition, SAS Institute will provide no support for the materials contained herein.

Date Modified:	2010-10-21 16:50:43
Date Created:	2010-07-07 14:52:42

Product Family	Product	Host	SAS Release
Product Family	Product	Host	Starting	Ending
SAS System	Base SAS	z/OS	9.1 TS1M3 SP4
		Microsoft® Windows® for 64-Bit Itanium-based Systems	9.1 TS1M3 SP4
		Microsoft Windows Server 2003 Datacenter 64-bit Edition	9.1 TS1M3 SP4
		Microsoft Windows Server 2003 Enterprise 64-bit Edition	9.1 TS1M3 SP4
		Microsoft Windows XP 64-bit Edition	9.1 TS1M3 SP4
		Microsoft Windows 2000 Advanced Server	9.1 TS1M3 SP4
		Microsoft Windows 2000 Datacenter Server	9.1 TS1M3 SP4
		Microsoft Windows 2000 Server	9.1 TS1M3 SP4
		Microsoft Windows 2000 Professional	9.1 TS1M3 SP4
		Microsoft Windows NT Workstation	9.1 TS1M3 SP4
		Microsoft Windows Server 2003 Datacenter Edition	9.1 TS1M3 SP4
		Microsoft Windows Server 2003 Enterprise Edition	9.1 TS1M3 SP4
		Microsoft Windows Server 2003 Standard Edition	9.1 TS1M3 SP4
		Microsoft Windows XP Professional	9.1 TS1M3 SP4
		Windows Vista	9.1 TS1M3 SP4
		Windows Vista for x64	9.1 TS1M3 SP4
		64-bit Enabled AIX	9.1 TS1M3 SP4
		64-bit Enabled HP-UX	9.1 TS1M3 SP4
		64-bit Enabled Solaris	9.1 TS1M3 SP4
		HP-UX IPF	9.1 TS1M3 SP4
		Linux	9.1 TS1M3 SP4
		Linux on Itanium	9.1 TS1M3 SP4
		OpenVMS Alpha	9.1 TS1M3 SP4
		Solaris for x64	9.1 TS1M3 SP4
		Tru64 UNIX	9.1 TS1M3 SP4
