The OLAPTableView is a Swing component that extends from TableView and allows OLAP (Online Analytical Processing) data to be viewed and manipulated in tabular form.
The Java class in this sample creates and displays a simple OLAP table view. For simplicity, this sample uses its own static data model for the OLAPTableView. In most real-world use cases, users will connect to live data and not create their own data model. For more information about how to connect the OLAPTableView to live data, see Sample 26005.
Here are the steps for creating a simple OLAPTableView:
The resulting code would look something like this:
...
Create a result set for the OLAPDataSet
...
OLAPDataSet model = new OLAPDataSet(resultSet);
OLAPTableModelAdapter adapter = new OLAPTableModelAdapter(model);
OLAPTableView tableView1 = new OLAPTableView(adapter);
|

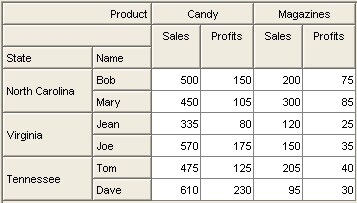

The code shown on the Full Code tab will create an OLAPDataSet and display a default OLAPTableView with that model.
These sample files and code examples are provided by SAS Institute Inc. "as is" without warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. Recipients acknowledge and agree that SAS Institute shall not be liable for any damages whatsoever arising out of their use of this material. In addition, SAS Institute will provide no support for the materials contained herein.
Tip: For help with building a SAS Java Project, see SAS Note 32218.
package samples;
import java.awt.BorderLayout;
import java.awt.Container;
import javax.swing.JFrame;
import javax.swing.JScrollPane;
import javax.swing.UIManager;
import com.sas.storage.olap.AxisInterface;
import com.sas.storage.olap.OLAPException;
import com.sas.storage.olap.TupleElementInterface;
import com.sas.storage.olap.TupleInterface;
import com.sas.storage.olap.embedded.Axis;
import com.sas.storage.olap.embedded.OLAPDataSet;
import com.sas.storage.olap.embedded.ResultSet;
import com.sas.storage.olap.embedded.ResultSetMetadata;
import com.sas.storage.olap.embedded.Tuple;
import com.sas.storage.olap.embedded.TupleElement;
import com.sas.swing.models.OLAPTableModelAdapter;
import com.sas.swing.visuals.olaptableview.OLAPTableView;
public class OLAPTableViewExampleApp {
protected OLAPTableView olapTable;
public static void main(String[] args) {
// set swing look and feel with system look and feel
try {
UIManager.setLookAndFeel(UIManager.getSystemLookAndFeelClassName());
} catch (Exception e) {
e.printStackTrace();
}
OLAPTableViewExampleApp simpleApp = new OLAPTableViewExampleApp();
simpleApp.createFrame(args).setVisible(true);
}
public JFrame createFrame(String[] args) {
JFrame frame = new JFrame(this.getClass().getName());
Container contentPane = frame.getContentPane();
contentPane.setLayout(new BorderLayout());
// for simplicity, create a static data model
// in real world use cases, usually the user will connect to live data
// instead of creating their own data model
OLAPDataSet defaultOLAPTableModel = null;
try {
TupleInterface tuple1 = new Tuple(new TupleElementInterface[] {
new TupleElement("Candy"), new TupleElement("Sales") });
TupleInterface tuple2 = new Tuple(new TupleElementInterface[] {
new TupleElement("Candy"), new TupleElement("Profits") });
TupleInterface tuple3 = new Tuple(new TupleElementInterface[] {
new TupleElement("Magazines"), new TupleElement("Sales") });
TupleInterface tuple4 = new Tuple(
new TupleElementInterface[] {
new TupleElement("Magazines"),
new TupleElement("Profits") });
TupleInterface tuple5 = new Tuple(
new TupleElementInterface[] {
new TupleElement("North Carolina"),
new TupleElement("Bob") });
TupleInterface tuple6 = new Tuple(new TupleElementInterface[] {
new TupleElement("North Carolina"),
new TupleElement("Mary") });
TupleInterface tuple7 = new Tuple(new TupleElementInterface[] {
new TupleElement("Virginia"), new TupleElement("Jean") });
TupleInterface tuple8 = new Tuple(new TupleElementInterface[] {
new TupleElement("Virginia"), new TupleElement("Joe") });
TupleInterface tuple9 = new Tuple(new TupleElementInterface[] {
new TupleElement("Tennessee"), new TupleElement("Tom") });
TupleInterface tuple10 = new Tuple(new TupleElementInterface[] {
new TupleElement("Tennessee"), new TupleElement("Dave") });
Axis columnAxis = new Axis(AxisInterface.COLUMNS_AXIS, null,
new TupleInterface[] { tuple1, tuple2, tuple3, tuple4 });
columnAxis.setAxisHeaders(new String[] { "Product", " " });
Axis rowAxis = new Axis(AxisInterface.ROWS_AXIS, null,
new TupleInterface[] { tuple5, tuple6, tuple7, tuple8,
tuple9, tuple10 });
rowAxis.setAxisHeaders(new String[] { "State", "Name" });
AxisInterface[] axes = { columnAxis, rowAxis };
// create an instance of result set metadata with the axes
ResultSetMetadata resultSetMetadata = new ResultSetMetadata(axes);
ResultSet resultSet = new ResultSet();
resultSet.setResultSetMetadata(resultSetMetadata);
Object[] values = new Object[] { "500", "150", "200", "75", "450",
"105", "300", "85", "335", "80", "120", "25", "570", "175",
"150", "35", "475", "125", "205", "40", "610", "230", "95",
"30" };
resultSet.setCells(0, 23, values);
// create a new olap table model with the resultSet we just created
defaultOLAPTableModel = new OLAPDataSet(resultSet);
} catch (OLAPException e) {
e.printStackTrace();
}
// create a new OLAPTableModelAdapter with the model we just created
OLAPTableModelAdapter adapter = new OLAPTableModelAdapter(
defaultOLAPTableModel);
// create a new OLAPTableView with the adapter containing our model
olapTable = new OLAPTableView(adapter);
// create a scroll pane with the OLAPTableView
JScrollPane scrollPane = new JScrollPane(olapTable);
// add the scroll pane to the content pane
contentPane.add(scrollPane, BorderLayout.CENTER);
contentPane.setSize(500, 250);
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.pack();
return frame;
}
}
|
