Usage Note 20093: Sorting rules for SASĀ® Web Report Studio
SAS Web Report Studio sorts category data items based on data type and the object in which the values are displayed.
| Data Type |
List Table |
Crosstabulation Table |
Graph |
| Character (values can be character, numeric, or alphanumeric) |
Formatted |
Formatted |
Formatted |
| Numeric (values are all numeric) |
Formatted |
Unformatted |
Unformatted |
| Dates, times, and timestamps |
Formatted |
Unformatted |
Unformatted |

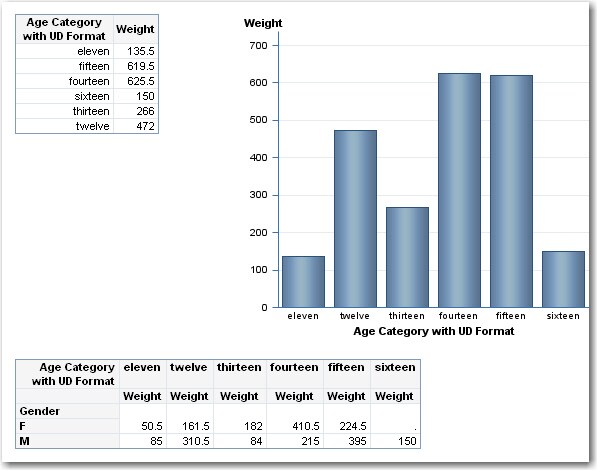

In the following example, a user-defined format has been applied to the Age data item, which has a numeric data type. The format replaces each numeric value with a string. For example, 11 is formatted as "eleven". In the list table, the values for Age are sorted by the formatted values. In the bar chart and the crosstabulation table, the values for Age are sorted by the unformatted values.

For a related note, see List tables and crosstabulation tables sort differently by default in SAS Web Report Studio.
Operating System and Release Information
| SAS System | SAS Web Report Studio | Microsoft Windows Server 2003 Datacenter Edition | 3.1 | | 9.1 TS1M3 SP4 | |
| Microsoft Windows Server 2003 Enterprise Edition | 3.1 | | 9.1 TS1M3 SP4 | |
| Microsoft Windows Server 2003 Standard Edition | 3.1 | | 9.1 TS1M3 SP4 | |
| Microsoft Windows NT Workstation | 3.1 | | 9.1 TS1M3 SP4 | |
| Microsoft Windows XP Professional | 3.1 | | 9.1 TS1M3 SP4 | |
| Microsoft Windows 2000 Server | 3.1 | | 9.1 TS1M3 SP4 | |
| Microsoft Windows 2000 Professional | 3.1 | | 9.1 TS1M3 SP4 | |
| Microsoft Windows 2000 Datacenter Server | 3.1 | | 9.1 TS1M3 SP4 | |
| Microsoft Windows 2000 Advanced Server | 3.1 | | 9.1 TS1M3 SP4 | |
| 64-bit Enabled Solaris | 3.1 | | 9.1 TS1M3 SP4 | |
| 64-bit Enabled HP-UX | 3.1 | | 9.1 TS1M3 SP4 | |
| Solaris | 3.1 | | 9.1 TS1M3 SP4 | |
| HP-UX | 3.1 | | 9.1 TS1M3 SP4 | |
| 64-bit Enabled AIX | 3.1 | | 9.1 TS1M3 SP4 | |
| AIX | 3.1 | | 9.1 TS1M3 SP4 | |
*
For software releases that are not yet generally available, the Fixed
Release is the software release in which the problem is planned to be
fixed.
| Type: | Usage Note |
| Priority: | medium |
| Date Modified: | 2012-01-23 11:03:44 |
| Date Created: | 2007-05-01 15:09:40 |
