26099 - Creating Columns Using Functions in the Expression Editor of SAS Enterprise Guide

Sample 26099: Creating Columns Using Functions in the Expression Editor of SAS Enterprise Guide

Creating Columns Using Functions in the Expression Editor

SAS Enterprise Guide has many built-in functions you can use to build expressions when creating new columns. A function takes a value and turns it into another related value. For example, the MONTH function will take a date and return just the month. The LOG function will return the natural log of a number. There are many functions to choose from in over 20 different categories including: arithmetic, character, date and time, descriptive statistics, financial, trigonometric, and truncation. To create new columns using functions, you use the Query Builder.

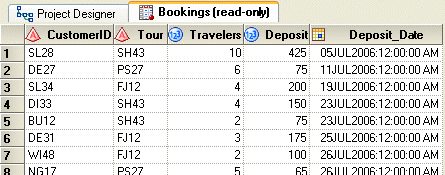

Here is a portion of the Bookings Excel file which has been converted to a SAS data table. The Deposit_Date column is a datetime value.

Data screen shot

To create a column that just has date values, you can use the DATEPART function. To open the Query Builder, click the data icon in the Project Explorer or Project Designer to make it active, and then select

Data ► Filter and Query

from the menu bar. The Query Builder opens with the Select Data tab on top. Select the columns for the query, in this case all of them.

Query builder screen shot

Creating a new column

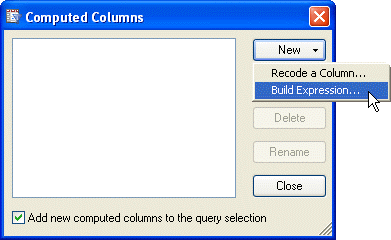

To create a new column, click the Computed Columns button in the Query Builder window. This opens the Computed Columns window. Click New and select Build Expression. This opens the Advanced Expression Editor window where you specify the expression to use for the new column.

Computed columns screen shot

Choosing a function
Click the Functions tab to list all available functions. These functions are grouped by category. Click a category, and all the functions in that category will be listed in the box on the right under Functions. To insert a function into an expression, click the function name, and then click Add to Expression. In this example, the help text at the bottom of the Functions tab tells you that the DATEPART function extracts the date (the number of days since January 1, 1960) from a datetime value (the number of seconds since midnight on January 1,1960).

Advanced expressions editor screen shot

Defining arguments for functions
Most functions take some sort of argument. When the function is inserted into the expression, a placeholder for the argument appears in the expression. You must replace the placeholder in the function with a valid argument. If the function calls for a character value, that value can be a column of type character, or a character string enclosed in quotes. If the function calls for a numeric value, that value can be a column of type numeric, or a number.

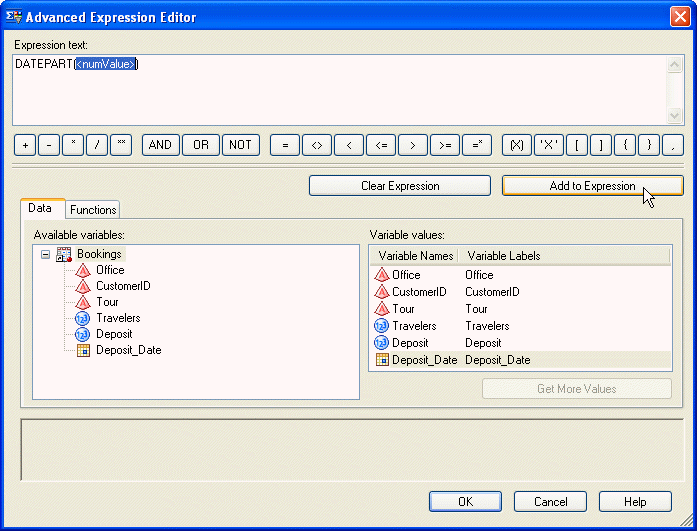

Click the Data tab to insert column names or values into the expression. Click the name of the column to insert into the function from the Variable values list, and then highlight the placeholder in the function. Click Add to Expression and the placeholder will be replaced by the column you selected, in this case the Deposit_Date column from the Bookings table.

Editor screen shot

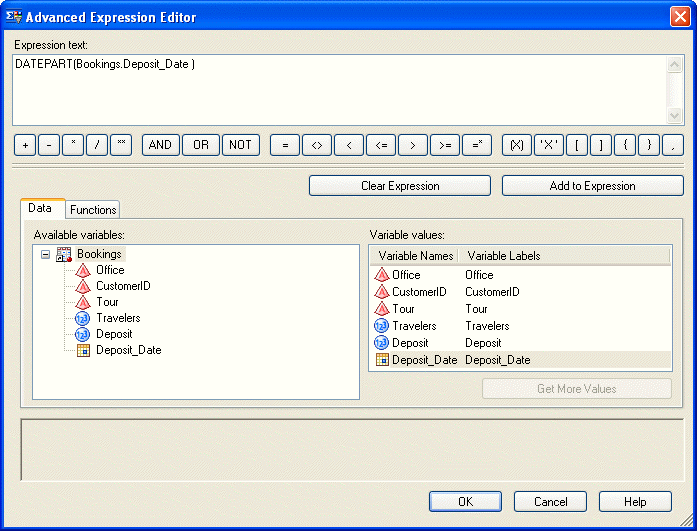

Here is what the expression looks like after replacing the placeholder.

Editor screen shot

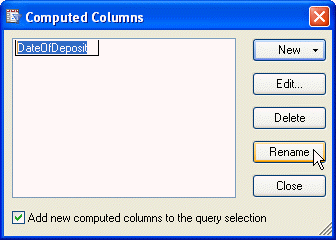

When you are satisfied with your expression, click OK to return to the Computed Columns window where you can rename the column if you like. Click Close in the Computed Columns window, and then click Run in the Query Builder.

Computed columns screen shot

Results

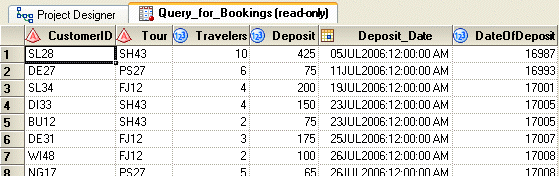

Notice here how the values for the new column, DateOfDeposit, are simple numbers. These numbers are dates represented as the number of days since January 1, 1960. To display the numbers as readable dates, give the column a date display format in the Properties window for the column.

Results screen shot
