Copy Objects to a New Process Flow and Run the Process Flow

Suppose that you want to create a process flow that runs only the inventory report and bar chart. You need to include the List Report and Bar Chart tasks as well as the Products data set.

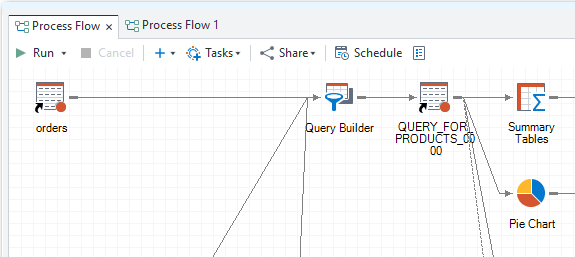

  1. If the Process Flow tab is not already open in the work area, double-click Process Flow in the Project pane.

  2. Select Filethen Newthen Process flow. An empty Process Flow tab named Process Flow 1 opens in the work area.

  3. Click the Process Flow tab in the work area.


Recently viewed items menu button
Click to view the full window.


  1. In the Process Flow tab, press Ctrl and select the List Report and Bar Chart objects.

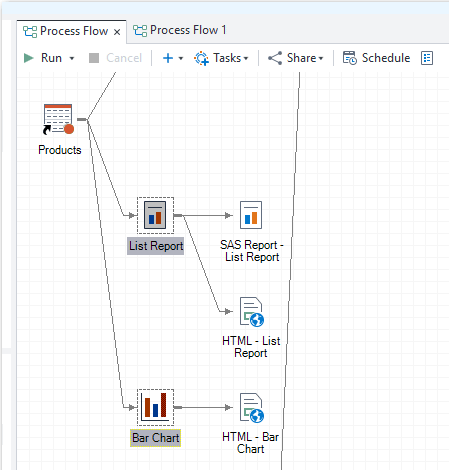

Process Flow window with objects selected
Click to view the full window.


  1. Right-click one of the selected objects and select Copy.


  2. Click the Process Flow 1 tab. Right-click in the Process Flow 1 tab and select Paste. Notice that the Products input data set for the tasks is included.

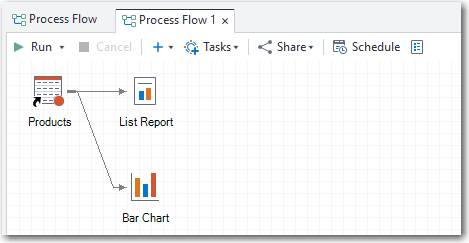

New Process Flow window the inventory report and bar chart


  1. Right-click in the Process Flow 1 tab and select Run. Watch the progress of the process flow as it runs.

  2. Now you can save your project for the last time. Select Filethen Save "Getting Started" project.



End of Lesson

You've finished . In the next topic you learn about more training that is available for SAS Enterprise Guide.
