Data Model Diagrams

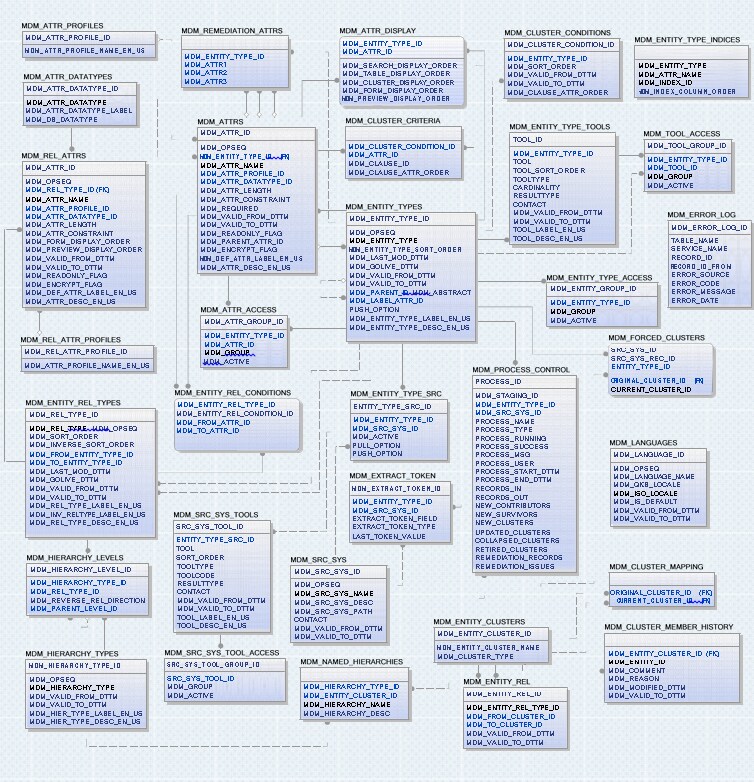

The following diagram illustrates the core tables in the SAS MDM data model. These tables are not dependent on the entity types defined in the hub.

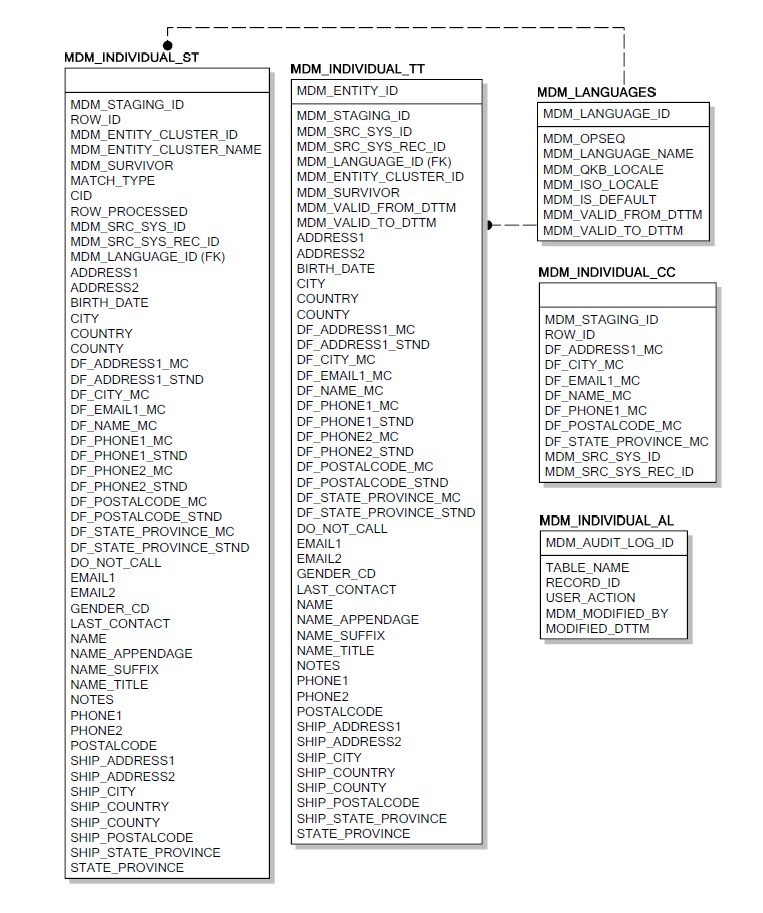

The following diagram shows the tables generated for the Individual sample entity type. Similar tables are created for the other samples or any other entity type that is defined in the hub. Most of the columns in these tables are represented by the attributes defined for the entity type.
