   |          S A S   S A M P L E   L I B R A R Y                |
   |                                                             |
   |    NAME: GPRCHARA                                           |
   |   TITLE: GPRCHARA-Adjusting the Size of GPRINT Characters   |
   | PRODUCT: GRAPH                                              |
   |  SYSTEM: ALL                                                |
   |    KEYS: GRAPHICS GOPTIONS GPRINT                           |
   |   PROCS: GPRINT PRINT PRINTTO                               |
   |    DATA: INTERNAL                                           |
   |                                                             |
   | SUPPORT: GRAPHICS STAFF              UPDATE:                |
   |     REF: SAS/GRAPH REFERENCE GUIDE                          |
   |    MISC: THIS PROGRAM NEEDS A FILENAME ALLOCATION.          |
   +-------------------------------------------------------------+*/

   /* Set the graphics environment */
goptions reset=all border cback=white
         colors=(black blue green red)
         ftitle=swissb ftext=none
         hsize=7in vsize=5in
         hpos=142 vpos=68;

   /* Assign the fileref DOW to the external file */
filename dow 'external-file';

   /* Suppress the date line and page numbers */
   /* Set linesize and pagesize */
options nodate nonumber linesize=76 pagesize=24;

   /* Specify the destination for all */
   /* subsequent procedure output     */
proc printto print=dow new;
run;

   /* Create the data set DOWHLC */
data dowhlc;
   input date date9. high low close;
   format date date9.;
   datalines;
02JAN1997   6511.38  6318.96  6442.49
03JAN1997   6586.42  6437.10  6544.09
06JAN1997   6647.22  6508.30  6567.18
07JAN1997   6621.82  6481.75  6600.66
08JAN1997   6650.30  6509.84  6549.48
09JAN1997   6677.24  6520.23  6625.67
10JAN1997   6725.35  6530.62  6703.79
13JAN1997   6773.45  6647.99  6709.18
14JAN1997   6816.17  6689.94  6762.29
15JAN1997   6800.77  6669.93  6726.88
16JAN1997   6818.47  6688.40  6765.37
17JAN1997   6863.88  6732.66  6833.10
20JAN1997   6839.13  6777.30  6843.87
21JAN1997   6934.69  6771.14  6883.90
22JAN1997   6913.14  6801.16  6850.03
23JAN1997   6953.55  6724.19  6755.75
24JAN1997   6798.08  6629.91  6696.48
27JAN1997   6748.82  6598.73  6660.69
28JAN1997   6823.48  6612.20  6656.08
29JAN1997   6673.39  6627.98  6740.74
30JAN1997   6845.03  6719.96  6823.86
31JAN1997   6912.37  6769.99  6813.09
;

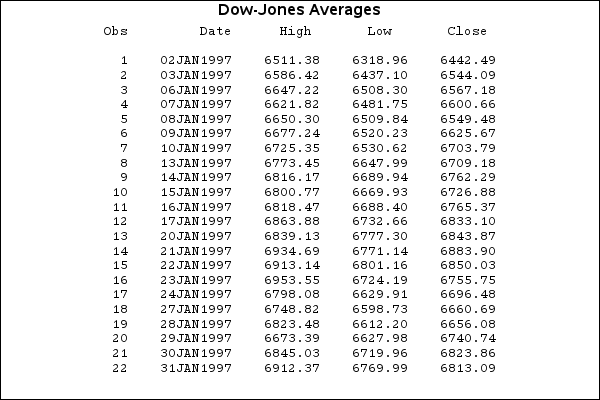

   /* Send the output to the destination file */
proc print data=dowhlc;
run;

   /* Reset destination for printed output to the default */
proc printto;
run;

   /* Define title and footnote */
title 'Dow-Jones Averages';
footnote h=3 pct f=swiss j=r 'GPRCHARA(a) ';

   /* Generate graph from the external file */
proc gprint fileref=dow;
run;

   /* Reduce HPOS= and VPOS= to increase cell size */
goptions hpos=75 vpos=30;

   /* Define footnote */
footnote h=3 pct f=swiss j=r 'GPRCHARA(b) ';

   /* Generate adjusted graph */
proc gprint fileref=dow;
run;
quit;
