SAS/C Cross-Platform Compiler and C++ Development System User's Guide, Release 6.50

Introduction

The SAS/C Debugger provides the capability of debugging programs in a cross-development environment. To debug a load module that was compiled with the SAS/C or C++ cross-platform compiler, you simply run the program with the =debug runtime option, just like any other SAS/C or C++ load module.

The debugger provides access to information from several different types of files, which may be resident on either the UNIX host or the target mainframe, including:

System Include Files
User Include Files
Source Files
Alternate Source Files
Debugger Files

When developing an application in a cross-development environment, the files used by the debugger, with the exception of the load module, may reside on the host workstation. In order for the debugger to access files that reside on the workstation, a distributed file system must be used to establish a client/server relationship between the target mainframe and the host workstation. The distributed file system used in the SAS/C cross-development environment is the Network File System (NFS) described in Installing and Administering the NFS Client and SAS Technical Report C-113 SAS/C Connectivity Support Library, Release 1.00. Using NFS, the debugger, running on the mainframe under MVS or CMS, has direct access to the source, include, and debugger files that reside on the host workstation.

If the debugger's default file searching mechanism does not meet your needs, you can change or augment the search mechanism with the debugger's set search command.

The set search command is used to specify filename templates. Filename templates are used to specify the identity and location of the source, include, or debugger files associated with the load module being debugged. Multiple filename templates can be defined for each type of file. As a result, the debugger can search for a file by more than one name or in multiple locations. Each template is saved in a search list, and each search list is associated with a specific type of file.

Filename templates are character strings which are similar to the patterns used in a C printf statement. Each filename template may contain conversion specifiers and characters. A conversion specifier is a character or a string preceded by a percent character. The conversion specifier is either replaced by its associated string or specifies the format of the conversion specifier that follows it. The resulting string is used as the name of the file to be opened. If a file with the resulting name cannot be opened, the next filename template in the search list is processed until either a file is opened or there are no more filename templates in the search list for that type of file.

This is a very powerful technique that allows you to direct the debugger to files that have moved or even changed names or file systems. This chapter explains how to use the set search and set cache commands to define filename templates and establish search lists.

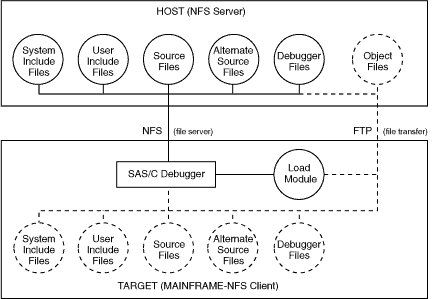

Debugging in a Cross-Development Environment illustrates the relationship between the files used by the SAS/C Debugger in the cross-development environment.

Debugging in a Cross-Development Environment
